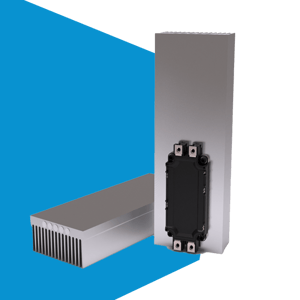

CooliBlade AURORA
Powerful and small footprint heat sink
AURORA
CooliBlade AURORA is a powerful heat sink platform for high-power applications. Its size is customizable for your need and therefore it gives you a design freedom for product development. AURORA is an ideal solution for vertical installations.
Use case:
Power modules and PCBs
Features:
Powerful cooling up to kilowatts
Easy mounting with a customized baseplate
Integrated evaporator, thermal channel and condenser
Low prototype investment
Applications
AC Drives, motor control, IGBT, renewable energy, power inverters/converters
Specifications

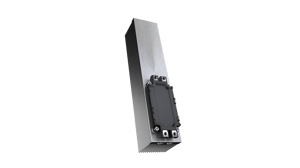

1 IGBT version
Dimensions: 72 x 61.2 x 350 mm
Design Power: 1000 W
ΔT @ 1000 W: 63,9 °C
Thermal Resistance @ 1000 W: 63,9 K/kW
•Flow rate (m3/h): 150
•Component surface area (cm2): 75
3 IGBT version
Dimensions: 216 x 61.2 x 350 mm
Design Power: 3000 W
ΔT @ 1000 W: 21,3 °C
Thermal Resistance @ 3000 W:
•Flow rate (m3/h): 150
•Component surface area (cm2): 75
Product Options
Evaluation Design
The easiest way to evaluate the AURORA performance is to check our evaluation designs. You can select from our standard module mountings or send your own lay-out for mounting drillings.
OEM Heat Sink Development
A custom design for heat sink is usually necessary when cooling high-power electronics. Through rapid prototyping, we build a prototype for your product design and transfer it into OEM Heat Sink production quickly.
AURORA – Customizable cooling solution to optimally fit your product
AURORA Benefits
High-performance
Power levels up to several kilowatts/module can be achieved. The structure of the NEOcore evaporator and the optimized fin structure together guarantee optimal efficiency for power modules and PCBs.
Easy integration
AURORA’s dimensions are easily adjusted based on the customer’s specifications, making retrofitting possible with vertical and horizontal installation.
Small footprint
AURORA is an ideal solution for vertical installation with only a narrow space available.
Cost-efficient
AURORA can be produced by an aluminum extrusion process, making it cost-efficient. CooliBlade NEOcore technology is smoothly integrated into the extruded aluminum element.
Applications
CooliBlade AURORA is efficient cooling technology for high power electronics, such like power modules and PCBs. These modules are typically used e.g. in AC drives EV charging stations and renewable energy solutions. AURORA is ideal for vertical model installation where you want to optimize the surface area required by the device. NEOcore technology enables the lowest thermal resistance from the heat source to ambient.
Interested in AURORA?
Familiarize yourself with the help of a AURORA product sheet.What are the specifications behind the AURORA series?
We compiled the technical specifications and measurements of the AURORA for you.
Talk with an expert.
Leave us a message to discuss how the AURORA platform fits your solution.
