NEOcore technology
NEOcore technology is a two-phase cooling technology that was designed to minimize the temperature difference between the top and bottom of the heat sink and simultaneously reducing the Delta T between the heat source and ambient. NEOcore improves the thermal conductivity of aluminum up to 1000 times.

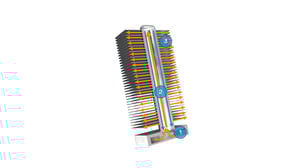

NEOcore technology is based on an integrated 3-in-1 thermal channel that provides an instant thermal flow from the heat source through the thermal channel and fins. The functionality of the thermal channel consists of three parts: an evaporator, a thermal channel, and a condenser.
1. Evaporator – The working fluid vaporizes in the evaporator and it transfer the heat to the entire structure until it returns to the evaporator as a liquid.
2. Thermal channel – The heated vapor moves instantly up in the thermal channel. The whole thermal channel structure is used for heat dissipation. NEOcore thermal channels are wickless.
3. Condenser – The optimized condenser functions as an optimal air interface.
NEOcore is a diverse technology platform. The diameter, length and structure of NEOcore based products can be adapted in different cooling cooling solutions based on the specifications.
Read more about productsThermal management redefined
Thermal management is one of the most challenging phases of product development that effects the product’s size, performance and lifespan. We have made it easy to take thermal management as an integrated part of product design process.
NEOcore technology enables rapid prototyping and fast development cycles for a customized cooling solution. The modularity of the technology offers scalability for cooling performance. That way it’s possible to achieve an optimal performance vs. weight ratio.
With NEOcore, you speed up your product design phase and improve the performance, lifespan and power-to-weight ratio of your power electronics products.
High-volume production facility
CooliBlade has significantly invested in a mass-production line for NEOcore-based thermal management solutions. Our production investment makes it possible to produce high-quality and cost-efficient products for multiple applications. Product line ramp-up co-funded by European Union will strengthen the company’s entry into the global markets, and it takes place from 03/2022 to 05/2023.
Benefits of NEOcore Technology
3-in-1 structure
NEOcore consists of an integrated evaporator, thermal channel and condenser. Due to integrated aluminum thermal channel structure, thermal interfaces and losses are minimized. No thermal interface between different metals.
Thermal conductivity
NEOcore two-phase technology provides an instant thermal transfer through the integrated thermal channel. In ideal conditions, thermal conductivity can be even 1000 times better than in aluminum.
Performance
NEOcore technology suits applications from tens of watts to several kilowatts of cooling power. Thanks to the integrated phase-change technology and optimized heat dissipation to air, NEOcore products offer the lowest thermal resistance on the market.
Cost-efficient
CooliBlade’s NEOcore technology reduces development cost and shorten time-to-market of power electronic products. In addition, the transfer of the product prototype to mass production is smooth and cost-efficient.
Interested in NEOcore technology?
Download the technology note about NEOcore technology, its performance tests and applications.
Do you want to know how the NEOcore technology suits your products?
Request a quick check to determine feasibility and the expected NEOcore performance.
Enter your details and read the NEOcore technical note.
CooliBlade offers extremely efficient cooling solution for high power electronics.
