AURORA's innovative design
Designed for Seamless IGBT Integration
Explore AURORA’s precision-engineered structure with an interactive image comparison. See its lightweight, durable aluminum exterior and large evaporators, which enables uniform cooling across the entire component, preventing hotspots and ensuring consistent thermal performance.
Two Architectures. One Platform.
Both AURORA products are built on patented NEOcore thermosyphon technology and outperform aluminium heat sinks in narrow air duct applications. The difference is how much thermal headroom your enclosure demands.
When your SiC modules are pushing beyond what skived or extruded aluminium can handle — and your enclosure leaves no room for a mechanical redesign — AURORA-X is the answer. Free-form geometry. Omnidirectional heat spreading. Fins alignable to any airflow direction.
When you need proven two-phase cooling performance in a standard narrow-duct footprint without the complexity of a custom geometry, Classic AURORA delivers. A scalable, cost-efficient solution trusted across AC drives, lifts, and industrial converters.
Conventional heat sinks spread heat in one direction, along the fin array axis. AURORA-X spreads heat in both directions across the baseplate simultaneously, from the moment it enters the evaporator. Hot spots are eliminated before they form.
A thinner baseplate frees up more usable air interface height within the same system envelope. More fin height means more cooling power — without changing a single mechanical dimension of your design.
AURORA-X is a direct form-factor replacement for aluminium heat sinks in narrow air duct applications. Retrofit legacy equipment or design next-gen hardware — the envelope stays the same.
The Numbers Speak.
−44 K
Cooler than extruded aluminium
at 2,200 W
−44 K
Cooler than extruded aluminium
at 2,200 W
3–5×
Higher power densities unlocked for next-gen SiC modules
3–5×
Higher power densities unlocked for next-gen SiC modules
Performance chart:
A line chart showing Extruded Aluminium / Skived Aluminium / AURORA-X curves crossed with LV100 IGBT power module, across the 600–3,000 W range.
Built for the Applications That Can't Afford to Overheat.

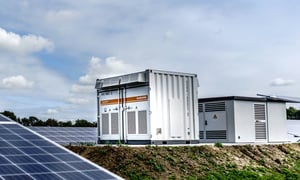

More energy harvested starts with cooler power modules. ULTIMA-X keeps your inverters running at peak efficiency.

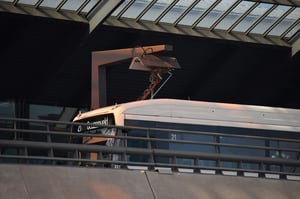

Compact, reliable, and straightforward to retrofit into existing enclosures.
From standard to high-density battery storage.

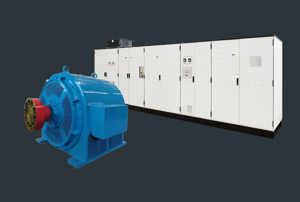

Reliable, cost-efficient cooling for standard IGBT motor control stacks.

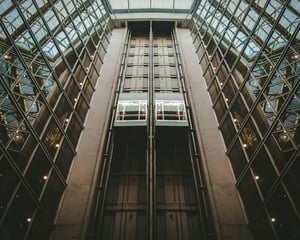

Reliability-critical applications across a wide range of power levels.
5G base stations and telecom infrastructure demand silent, maintenance-free cooling in tight spaces.
